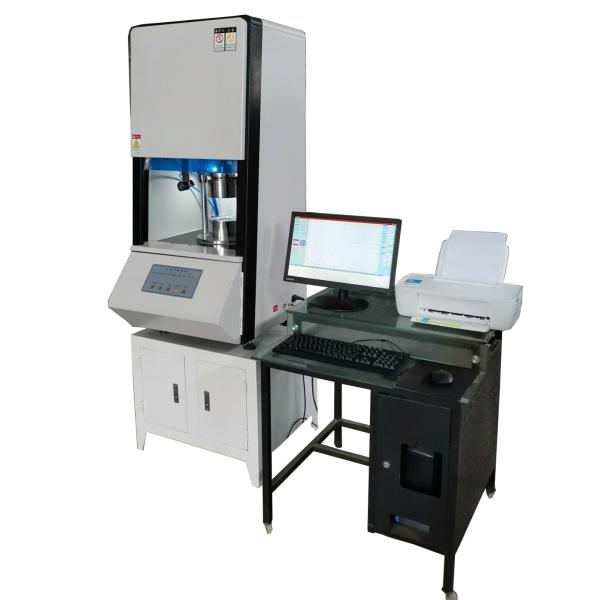

DX8536 Rotorless vulcanization testing machine

Scope of application: It is suitable for analyzing and measuring the scorching time, positive vulcanization time, vulcanization rate, viscoelastic modulus and vulcanization flat period and other performance indicators of the rubber vulcanization process, and is a testing instrument used by the state for the development of new products, the study of rubber formula and the inspection of product quality.

Conform to the standard: meet the requirements of GB/T16584 "Rubber - Determination of Vulcanization Characteristics by Rotorless Vulcanizer", the ISO6502 requirements and the T10, T30, T50, T60, T90 data required by the Italian standard.

Key features:

1. This instrument adopts a real closed mold cavity, which is the same as that of American Alpha (formerly Monsanto). Repeatability and test data are comparable to alpha. It is in a leading position in the international industry.

2. This instrument is based on a large-scale database development platform, and the temperature control device adopts software for direct control and collection and processing. This technology is leading the new international trend.

3. This instrument has the functions of statistics, analysis, storage, comparison and so on. Humanized design, easy to operate.

Technical Specifications:

Temperature control range: 0~200°C

Temperature fluctuation range: ±0.1°C

Temperature display resolution: 0.1°C

Heating time: room temperature to 200 °C about ≤ 10min to reach equilibrium

Time setting range: 2min to 120min arbitrarily selected

Motif temperature fluctuation: ≤±0.1°C%

Torque range: 0~20N.m

Swing frequency: 1.7Hz (100r.min‐1)

Rotor swing amplitude: ±0.5° total amplitude of ±1°

Power consumption: 800W

Cavity structure: Monsanto form

Report content: ML, MH, ts1, ts2, t10, t30, t50, t70, t90, vulcanization curve, temperature curve

Executive standard: ASTMD5289-95ISO6502:1991GB/T16584-1996

Power supply voltage: AC220V±10%50HZ

Dimensions: 640mm× 580mm×1300mm

Net weight; 210Kg
