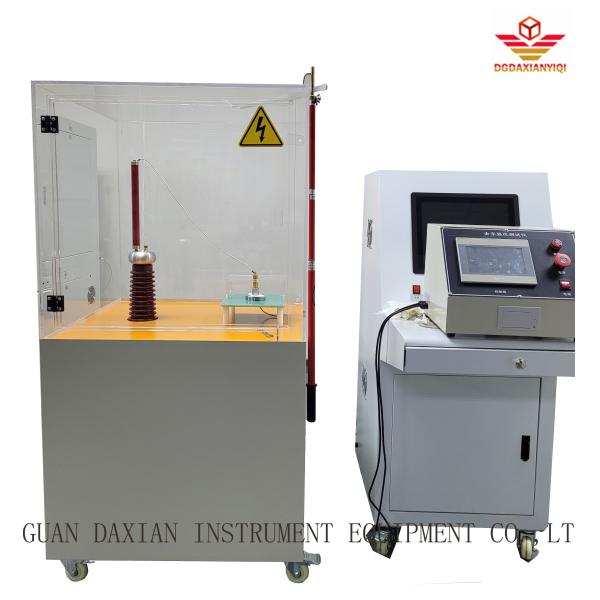

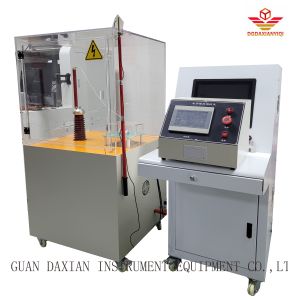

ASTM D149 Electrical Dielectric Strength Tester , Plastic Testing Equipment

Electrical Dielectric Strength Tester Plastic Testing Equipment

Scope of application:

It is mainly applicable to solid insulating materials, such as plastic, film, resin, mica, ceramics, silica gel, glass, insulating paint, etc., to measure the breakdown strength and voltage withstand time under power frequency (48~62Hz) or corresponding DC voltage in air or liquid medium. It is applicable to the mode of continuous and uniform voltage rise or step by step voltage rise. Apply AC/DC voltage to the sample until breakdown, measure the breakdown voltage value, and calculate the breakdown strength of the sample; The voltage shall be raised to the specified value by using the method of rapid voltage rise, and the sample shall not be broken down for a certain time. At this time, the specified value shall be the withstand voltage value of the sample.

Standards:

IEC60243-1 Test Method for Electrical Strength of Solid Insulating Materials - Test at Power Frequency；

IEC60243-2 Test Method for Electrical Strength of Solid Insulating Materials - Corresponding DC Voltage Test；

ASTM D149 test standards.

Main technical parameters:

1. Test voltage: AC 0~50 kV continuously adjustable DC 0~50 kV continuously adjustable
2. Transformer capacity: 10 KVA
3. Boost speed: divided into 6 gears: 50, 100, 200, 500, 1000 and 2000 (KV/S)
4. Boost speed regulation: automatic electrical speed regulation
5. Test method: DC test, AC test
6. Boost mode: automatic programmed boost
7. Power frequency power frequency: 50Hz sine wave

Breakdown voltage	0~50kV
Voltage measurement accuracy	≤ 2%
Leakage current selection	1~20 mA
Power supply	AC220V 50/60Hz
dimension	L 1000 * W 800 * H 1600 mm
Weight	200KG
