NBS Smoke Density Chamber

Ask Lasest Price
Brand Name :	DAXIAN
Model Number :	DX8368
Certification :	ISO5659.2-2006、GB 8323.2-2008
Price :	Negotiation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	5 sets per month
Delivery Time :	5-9 work days

Add to Cart

Product Details
Company Profile

NBS Smoke Density Chamber

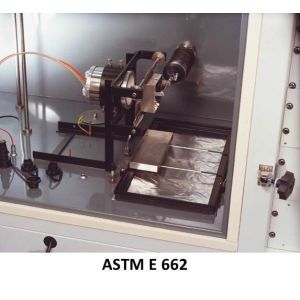

ASTM E 662 Nbs Smoke Density Chamber

Introduction:

This fire-test-response standard covers determination of the specific optical density of smoke generated by solid materials and assemblies mounted in the vertical position in thicknesses up to and including 1 in. (25.4 mm).

The test chamber is approximately 3 feet (915 mm) high, 3 feet (915 mm) wide, and 2 feet (610 mm) deep, encompassing a volume of about two-thirds of a cubic yard (0.52 m3). Exposed sample size is approximately 2-1/2 inches (63.5 mm) square, and it is held in a vertical position facing a radiant heat source.

Standards:
- ISO5659.2-2006
- GB 8323.2-2008

Machine performance:

Transmittance resolution	0.0001%;
Measurement range	0-100%;Automatic shift during measurement.
Measurement accuracy	± 3%
Working voltage	AC200-240V 50Hz;
Environmental humidity	at room temperature to 40 ºC
Working environment	when the instrument is running, it should avoid direct glare and no forced air flow.
Measurement software	based on WINDOWS XP operating interface, LabVIEW style.Show the transmittance and time curve.English and Chinese interface, and provide Chinese and English instruction manual.
