UL94 Plastics Horizontal And Vertical Burning Tester ASTM D65

Ask Lasest Price
Brand Name :	DAXIAN
Model Number :	DX8379
Certification :	UL94，ASTM D65，D4804，D3801，ISO1210，IEC60707, GB2408，GB13488
Price :	Negotiation
Payment Terms :	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash
Supply Ability :	15 sets per month
Delivery Time :	15 work days

Add to Cart

Product Details
Company Profile

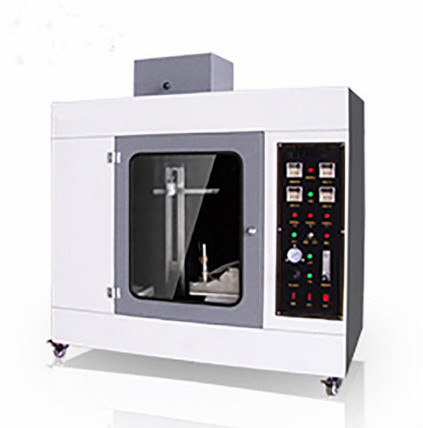

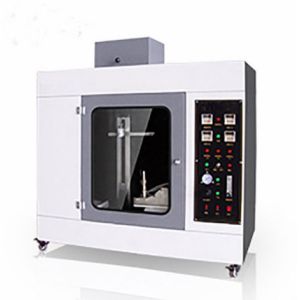

UL94 Plastics Horizontal And Vertical Burning Tester ASTM D65

UL94 Plastics Horizontal and Vertical Burning Testing Machine

Introduction:
It is suitable for testing the noncombustibility of plastics or films under the direct combustion of specified fire source to judge the fireproof grade of plastics.

Stadards:
UL94,ASTM D65,D4804,D3801,ISO1210,IEC60707, GB2408,GB13488

Main feature:

Laboratory fume hood:

inside volume 0.5m3

chamber permits observation of tests

normal thermal circulation of air during burning

inside surface should be dark color

light level shall be less than 20lx

exhaust fan to remove combustion

exhaust fan should be turned off during testing

Optional: mirror to capture rear view

Laboratory burner:

tube with length 100±10mm

inside diameter 9.5±0.3mm

compliance with ASTM D 5025

IEC TS60695-11-4 Method A (tech equ ASTM D 5025)

and ignition source P/PF2 os ISO 10093 (tech equ ASTM D 5025)

Burner Wing Tip (used in HBF, HF-1 HF-2)

length of slit 48±1mm

width 1.3±0.05mm

Burner Mounting Fixture:

20 degree from vertical axis (used in 5VA,5VB)

Ring stands

for horizontal and vertical postioning of specimen or wire gauge

stands with clam adjustable to desired angles and heights constructed from aluminium or steel

Timing devices- accurate to 0.1sec

measuring scale- graduated in mm

gas supply- technical grade methane gas (min 98% pure) with regulator and meter for uniform gas flow

Wire gauze:

approximatel 20 opening per 25mm

made with 0.43±0.03mm diameter iron or steel wire and cut to approx 125mm squares (used in HB)

conditioning room or chamber : 23± 2 deg C temp

Humdity 50±10 %

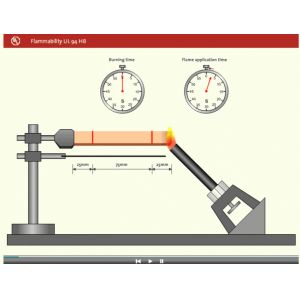

HB support Fixture-(used in HB)

metal support fixture for specimen that are not supporting

Micrometer- capable of being read to 0.01mm

cotton- a supply if absorbent 100% cotton

dessicator- containing anhydrous calcium chloride

maintaining at relative humidity exceeding 20% at 23±2deg C

conditioning oven- min of 5 air changes per hour, maintained at 70±2deg C

specimen mandrel form- 12.7±0.5mm diameter rod with min 250mm length (used in VTM-0, VTM-1, VTM-2)

Tape-pressure sensitive adhesive (used in VTM-0, VTM-1, VTM-2)

Support gauze (used in HBF, HF-1, HF-2)

wire cloth plain weave, low caron, plain steel or stainless steel

approx 215mm longX75mm wide having 13mm length bent to form a right angle at one end

consist of 6.4mm mesh gauze constructed of 0.88±0.05mm dia steel wire

cloth mesh and wire dia to be determined as per ASTM E 437

Foam support fixture(used in HBF, HF-1, HF-2)

fixture capable of holding support gauze including height adjustment

Manometer/ pressure gage- capable of measuring 200mm of water with increment of 5mm

Flow meter- a rotameter calibrated as per practice of rotameter calibration D 3195, with correlation curve appropriate to gas, or a mass flow meter with ± 2 percent accuracy.

Equipment specification:

Model	DX8379-UL94
Dimensions	About 7, 000 (w) X4, 000 (D) X4, 000 (H)m
Power supply	AC 380V, 50/60Hz
Brochure	Can provide
Air Velocity	19±8 Km/h
Tools	Propane gas/liquefied natural gas, Compressed air, Vacuum cleaners, Computer
