ASTM D2843 Density Of Smoke Burning Or Decomposition Of Plastics Smoke Tester

ASTM D2843 Density Of Smoke From The Burning Or Decomposition Of Plastics Testing Equipment DIN4102

Description:

It is suitable for the determination of static smoke production when building materials and products are burned;
Used for the determination of static smoke production when other solid materials are burnt.

Standards:

ASTM D2843:Density Of Smoke From The Burning Or Decomposition Of Plastics

DIN4102

Technical parameter:

1. Gas source: Propane gas with a purity of ≥95%, or coal gas with the same purity (provided by the user);

2. Combustion lamp: Bunsen burner, length 260mm, nozzle diameter 0.13mm, 45° angle with smoke box;

3. Photoelectric system: the light source is a bulb, the power is 15W, and the working voltage is 6V;

4. Exhaust system: The machine is equipped with a powerful exhaust fan, after the test, the exhaust gas can be discharged outdoors;

5. Smoke density measurement accuracy: ±3%;

6. Receiver: silicon photocell, which completely shields the light transmittance from 0%;

7. The focal length of the receiving lens: 60～65mm;

8. The working pressure of the main burner: 276KPa (adjustable);

9. Auxiliary burner pressure: 138KPa (adjustable);

10. The test starts with automatic timing, automatic ignition, automatic correction of luminous flux; automatic smoke exhaust at the end of the test;

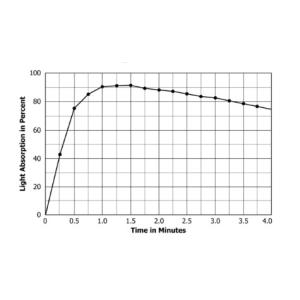

11. Computer control, including a set of light transmittance measurement interface software, can output curve reports, automatically save data and print;

Equipment structure:

Combustion box size	L300W300H790 (mm)
Dimensions	(800 × 500 × 900) m m (LWH)
Power supply	AC220V±10%, 50Hz
The combustion box	is made of **304 stainless steel, with a thickness of 1.2MM;
Weight	35 Kg

1. This machine is composed of three parts: combustion box, electric control box and computer;

2. The rear of the electric control box is equipped with an R232 computer interface, which can be operated directly on the panel or connected to a computer, with a data printer;
